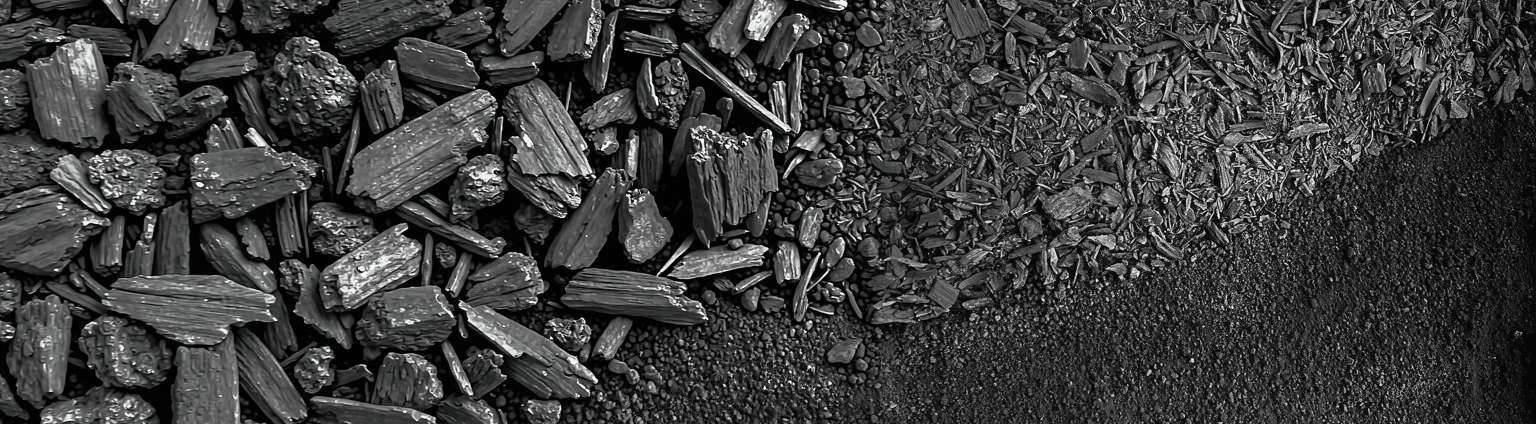

The chemistry of biomass waste determines what gasification yields — at least two value flows: a syngas value flow and a solid biochar value flow. The solid value flow upgrades into biochar, activated carbon, or battery-grade hard-carbon precursor; the syngas value flow, by local demand, upgrades through Fischer–Tropsch synthesis into green chemicals such as alcohols or ammonia, or goes to energy use — power generation or district heating. But Bio²X goes further. As regional green infrastructure, Bio²X couples with the local resource endowment to grow new industries through industrial symbiosis, and the green economy prospers.生物质废弃物的理化性质,决定了气化至少能联产气相与固相两种价值流。固相价值流可以做成生物炭、活性炭或电极硬炭前驱体;气相价值流则按站点需求联产绿色化学原材料(如费托合成醇或氨),或能源化利用(发电或供热)。Bio²X 还不止步于此。作为区域绿色基建设施,Bio²X 与当地的资源禀赋耦合,创生新的产业,绿色经济由此繁荣。

Scroll向下
01 Shape 01 塑形价值流 02 Verbund 02 耦合联产 03 Bloom 03 绽放生态 Bio²X system. Bio²X system.
Why Bio²XWhy Bio²X

We live in a VUCA world that keeps accelerating. Energy is decentralizing. Supply chains are shortening and going local. Resilience now outranks efficiency. These trends convince us: the things that are truly alive — and that create value over time — tend to share a few defining traits. 我们处在 VUCA 的时代,世界还在加速变化。能源在去中心化,供应链在缩短、变更本地化,韧性高于效率。这些趋势使我们相信:真正有生命力、能长期创造价值的事物,会呈现出几个共同的特征。

Antifragile反脆弱
Volatility and shocks are unavoidable. The wind puts out the candle but feeds the fire. We take that seriously: a system earns its keep by surviving the bad years, not just the good ones. (Taleb, Antifragile) 波动和冲击不可避免。蜡烛会被风吹灭,火却越烧越旺。我们认这个理:站得住的系统,是能熬过坏年景的,不只是趁好年景长得好。(塔勒布《反脆弱》)
Value Flywheel价值飞轮
Some growth compounds. Each turn of the wheel makes the next turn easier — it gets faster the longer it runs, and lighter on effort. Bezos proved the model at Amazon. 有些增长是有复利效应的:每转一圈,下一圈就更轻。越转越快,越久越省力。贝佐斯用亚马逊证明了这一点。
Entropy-reducing system熵减系统
A living system has to do work against disorder — stay open, keep iterating, or it falls apart. As Schrödinger put it, life feeds on negative entropy. 活着的系统必须主动做功,对抗混乱。保持开放、持续迭代,才不至于散掉。薛定谔说,生命以负熵为食。
Aligned interest利益交集 (Aligned interest)
Zero-sum arbitrage models flare up and vanish in an instant. We believe the place where individual interest and public interest overlap is the largest value pool of the present and the future. 零和套利的模式瞬生瞬灭。我们相信个人利益和公众利益重叠的地方才是当下和将来最大的价值洼地。

Bio²X embodies every one of these traits. 这四条,Bio²X 都具备。

Bio²X designs non-linearly — restoring value, loop-coupling energy and material, cascading value flows into clusters, and blooming the local green economy. Bio²X 用非线性的理念-价值还原,能量与物料环形耦合,价值流级联成簇,绽放当地的绿色经济。

A fact about the system关于这个系统的一个事实

One feedstock, two value flows.一个原料,两条价值流。

Bio²X restores, couples, cascades and creates energy and material as two value flows.Bio²X 的方式,是把能量和物料这两条价值流还原、耦合、级联、创生。

01

Shape the circle塑形价值流

Make every link mesh.让每一环都咬合。

Biomass waste yields no value on its own. It scatters, heterogenizes, and stays low-density — and turning it into value is work against entropy: organizing disorder into one steady, on-spec supply. It is a system, not a reactor. We solve a dozen coupled problems at once — feedstock heterogeneity, conversion efficiency, separation, product value, offtake qualification, policy, and the regional infrastructure beneath it all. Most technically mature projects still fail here: on CAPEX overrun, on missing offtake agreements, on feedstock that never arrives on spec. Shape is how we align that whole chain — feedstock → gasification → application → operation → scale-out — before we order a single machine, so the project is buildable, financeable, and bankable.生物质废弃物不是一种能自行产生价值的原料。它分散、异质、低密度——把它变成价值,本身是与熵增对抗的做功:把混乱组织成稳定可靠的供给。它是系统,不是反应器。十几层耦合问题要同时求解:原料异质、转化效率、分离纯化、产品价值、承购认证、政策稳定,还有其下的区域基础设施。许多技术成熟的项目也败在这里:CAPEX 超支、承购协议缺失、原料始终到不了规格。塑形,就是我们在下单任何设备之前,先把整条链对齐——原料 → 气化 → 应用 → 运营 → 放大——让项目可建、可融、可投资。

Feedstock原料 Gasification气化 Application应用 Operation运营 Scale-out放大
Feedstock ID 原料识别 Pre-treatment 预处理 Gasifier 气化炉 Syngas cleanup 合成气净化 Synthesis & power 合成 · 发电 Products 产品 only the middle of the chain 气化炉只是中间那一段 Feedstock characterization alone must solve at once: calorific value · moisture · particle size · ash · chlorine · alkali metals 仅原料识别一项就要同时处理:热值 · 含水率 · 粒度 · 灰分 · 氯 · 碱金属
02

Verbund the circle耦合联产

Verbund means coupling, cascade and multi-output as one — carrying through the whole project life cycle, from first concept through operation to a regional green-economy cluster.Verbund 是耦合、级联与联产的三位一体——贯穿整个项目生命周期:从立项,到运营,到簇联成区域绿色经济生态圈。

Verbund is our method of coupled multi-output, living in the integrated site. Its logic removes silos: the by-product and waste heat of one process become the input of the next, by design rather than by afterthought. Feedstock, multi-output and local demand stop being separate problems and become one cascade. One feedstock, several values; one site, many industries; the whole absorbs shocks, not a single unit. And it only works if the engineering holds — feedstock characterization, syngas cleaning, heat integration, carbon accounting: the capabilities that turn the concept into a working site.Verbund 是我们的耦合联产方法,落地为一体化设施。它的逻辑是消除孤岛:一个环节的副产物与废热,在设计之初就作为下一个环节的投入。原料、联产、当地需求,不再各算各的,而是一条级联。一种原料,多种价值;一个站点,多个产业;全网吸收波动,而不是压在单台设备上。而这套方法要成立,靠的是工程能力撑住——原料识别、合成气净化、热集成、碳核算,这些把理念变成可运行站点的能力。

Biomass waste One feedstock 生物质废弃物 一种原料 Verbund site Gasification · pyrolysis 一体化设施 气化 · 热解 Gas phase · syngas + recoverable heat 气相 · 合成气 + 可回收热 Solid phase · biochar 固相 · 生物炭 LOCAL ENERGY Power · direct heat · FT synthesis → green power, district heat, alcohols / ammonia 当地用能 发电 · 直供热 · 费托合成 → 绿电、区域供热、醇 / 氨 LOCAL MATERIALS Biochar / activated carbon / hard-carbon precursor 当地材料 生物炭 / 活性炭 / 电极硬炭前驱体 By-product and waste heat → input of the next step 副产物与废热 → 下一环节的投入
03

Bloom the circle绽放生态

Prosperous local green economy.繁荣当地绿色经济生态。

Bio²X is both green-economy infrastructure and the connector between a region's resource endowment and its green industrial upgrade. We develop and partner with entrepreneurial and philanthropic organizations worldwide.Bio²X 既是绿色经济的基础设施,也是区域资源禀赋与产业绿色升级的联结器。我们与全球富有创新精神与公益理念的企业家组织开发合作。

Entrepreneur org · China industry network企业家组织 · 中国产业网络

Zhenghe Island正和岛

Zhenghe Island, founded in 2011, is an entrepreneur organization with over 10,000 members.正和岛 成立于 2011 年,拥有上万会员的企业家组织。

Entrepreneur org · China industry network企业家组织 · 中国产业网络

Alashan SEE阿拉善 SEE

Founded in 2004 by nearly 100 entrepreneurs in Inner Mongolia's Alashan Tengger Desert — China's most influential entrepreneur-led environmental organization. It develops green-economy and ecological projects through business and industrial approaches.2004 年由近百位企业家在内蒙古阿拉善腾格里沙漠发起——中国最具影响力的企业家环保组织。它致力于用商业与产业的方式开发绿色经济与生态项目。

Solution方案

Solution modules we deploy我们部署的方案模块

Three configurable cores. Each pairs a local feedstock or fuel with coupled outputs, and closes its own loop.三套可配置的模块内核。每套把当地原料或燃料与联产输出配对,并闭环自身。

01
Biomass module生物质模块
For regions with stranded crop and forestry residue适用于农林残余外溢的地区

Biomass Verbund module生物质 Verbund 一体化模块

Feedstock原料Agricultural & forestry residue农林残余物
Multi-output联产Biochar + power; heat, steam, and wood vinegar as by-products生物炭 + 发电;热、蒸汽、木醋液为副产
Scale规模20 t/d feedstock → ~5 t/d biochar; skid ~12 × 2.1 × 2.9 m20 t/d 原料 → 约 5 t/d 生物炭;撬装约 12×2.1×2.9 m
Deployment部署场景Nearby heat or power demand, plus carbon-material buyers就近的热电需求,以及碳材料买家
MODULE CORE 模块内核 Agricultural & forestry residue 农林残余物 Carbonisation · gasification 炭化 · 气化 Biochar 生物炭 Power via syngas 合成气发电 + heat · steam · wood vinegar +热 · 蒸汽 · 木醋液
02
Waste module固废模块
Towns and industrial parks with no landfill headroom无填埋空间的海岛与工业园区

Waste-to-energy gasification垃圾热解气化发电

Feedstock原料Municipal & organic solid waste, sorted then pyrolysis-gasified城镇与有机固废,分选后绝氧热解气化
Multi-output联产Power (≥36% overall); ash to brick, zero landfill; heat, H₂, cooling extendable发电(综合效率≥36%);灰渣制砖、零填埋;热、氢、冷可扩展
Scale规模300 t/d → ~4.6 MW net; containerized station 13.8 × 3 × 3 m300 t/d → 净输出约 4.6 MW;集装箱式能源站 13.8×3×3 m
Deployment部署场景Island and coastal towns, off-grid or grid-weak海岛、沿海城镇,离网或弱网
MODULE CORE 模块内核 Municipal & organic solid waste 城镇与有机固废 Sort → pyrolysis gasification 分选 → 绝氧热解气化 Power 发电 Ash → brick 灰渣制砖 zero landfill · heat / H₂ / cooling extendable 零填埋 · 热/氢/冷可扩展
03
Transitional power过渡性电源
Indonesia & off-grid islands — replacing diesel印尼与离网海岛——替代柴油

Low-rank coal power module低阶煤离网发电模块

Feedstock原料Low-rank / lignite coal (3–4 kcal/g), fluidized-bed gasification tuned for it低阶煤/褐煤(3–4 kcal/g),流化床气化专为褐煤调校
Multi-output联产Power + heat; dry process — no tar, no wastewater电 + 热;干法工艺——无焦油、无废水
Scale规模G1-1 / G1-2 / G1-4 → 1.25 / 2.5 / 5 MW; 40-ft container skidG1-1/2/4 → 1.25/2.5/5 MW;40尺集装箱撬装
Deployment部署场景Off-grid islands now burning diesel — ~$0.086/kWh vs $0.37–0.57/kWh现靠柴油供电的离网海岛——约 $0.086/kWh,对比柴油 $0.37–0.57/kWh
MODULE CORE 模块内核 Lignite / low-rank coal 褐煤 · 低阶煤 Fluidised-bed gasification 流化床气化 Power 电力 Heat dry process — no tar, no wastewater 干法工艺——无焦油、无废水
Start Bio²X从这里开始

Tell us about your project.说说你的项目。

We only ask what you already have. Answer what you can; the rest we work out together.只问你现在手上有的。能答的先答,其余我们一起补全。

Step 01步骤 01

Tell us告诉我们

A guided conversation, or the form below — same questions either way. Say as much or as little as you like.引导式对话,或下面的表——问的是同一套问题。说多说少都算数。

Step 02步骤 02

Inside review内部评估

We run an inside review to assess your project description.我们会做一次内部评估,核看你的项目描述。

Step 03步骤 03

We reply我们回复你

Someone from the team comes back to you directly, on the channel you chose.团队会有人直接回复你,用你选的那种方式。

Prefer to write? Email us →更想直接写?发邮件给我们 → hello@bio2xcircle.com — documents can follow later, no need to upload anything now.hello@bio2xcircle.com — 有现成资料可以随后再发,现在不必上传。
Contact us联系我们

Let's talk.聊聊。

hello@bio2xcircle.com

Hold biomass, land, energy demand, or capital tied to a place? Reach the team directly.你在某地握有生物质、土地、用能需求或资本?直接联系团队。

Bio²X Circle is a brand of Shanghai Circle Engineering Co., Ltd. Bio²X Circle 是上海 Circle Engineering Co., Ltd. 旗下品牌。
a prosperous regenerative green region at golden hour Where regional energy and feedstock align, a green economy blooms.当区域能源与原料对得上,绿色经济便在此绽放。
